Koyorad: Alloy Radiator: HONDA CR-Z 1.5 Hybrid 10-
Enhance your Honda CR‑Z (2011–2016, manual) or Honda Fit (2009–2014, manual) with the Koyorad KS-Series high-performance alloy radiator (Part No. KS082409). Featuring an ultra-slim 25 mm high-density KS core with N‑Flo triple-pass design, this direct-fit radiator delivers 20–30% more cooling efficiency in OEM-sized dimensions, ideal for daily driving and spirited use. Precision-crafted from all-aluminum, it's TIG-welded and Nocolok-brazed for strength and longevity, and includes OE-style mounting, billet filler neck, and a 1/8″ NPT sensor port for temperature gauge compatibility—no modifications needed.
USA Part Nos.: KS082409
OEM Part Nos: 19010RTW004
Car Models: CR-Z 1.5h 03/10-
Engine code(s): LEA-MF6

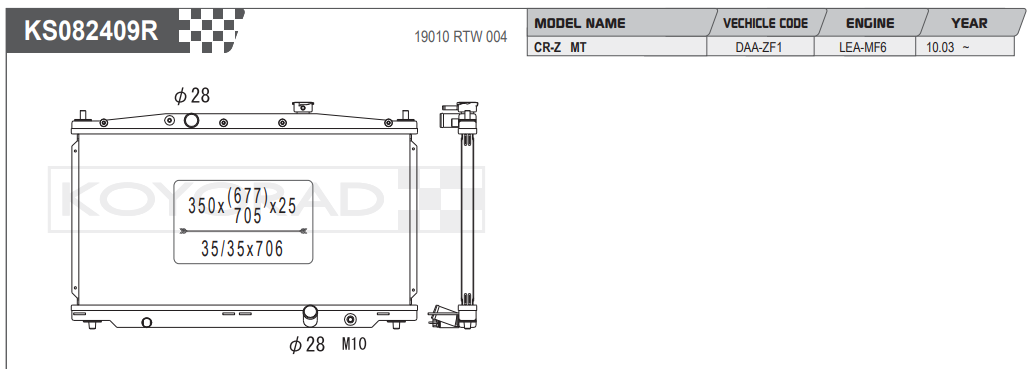

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
