Koyorad: Alloy Radiator: HONDA Jazz / Fit 1.2i 01-
Upgrade your Honda Jazz/Fit GD (1.2–1.3 i‑DSI, 2001–2008, manual transmission) with the Koyorad KV081613R high-performance alloy radiator. This direct-fit replacement features a robust 36 mm Hyper V‑Core that increases coolant capacity while maintaining a compact profile, perfect for tight engine bays. Precision TIG welding and Nocolok brazing ensure long-lasting durability and leak-free performance under daily and spirited driving conditions. Retaining the stock hoses, fan paddles, and mounts, it offers stress-free installation with no modifications required.
USA Part Nos.: N/A
OEM Part Nos: 19010PWAQ01
Car Models: Fit / Jazz I 1.2/1.3 06/01-
Engine code(s): L13A1, L13A5, L12A1, L12A3, L12A4

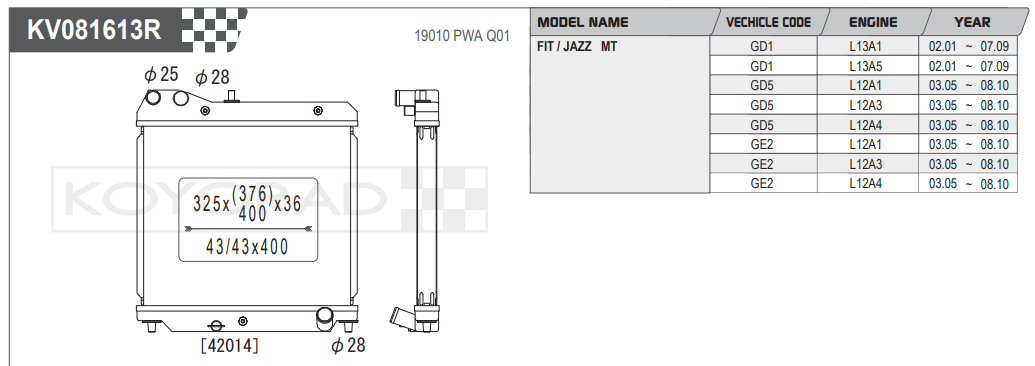

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
