Koyorad: Alloy Radiator: Sylvia/180/200/240SX Man. 10/93-11/94

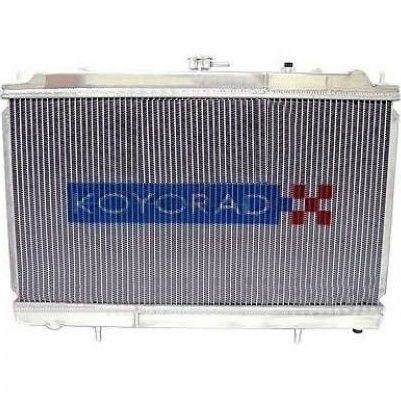

Upgrade your Nissan Silvia (S14 1993–1998 / S15 1998–2002) with SR20DET manual transmission using the Koyorad HH-Series Dual-Pass Alloy Radiator (Part No. KH020369NU06). This premium all‑aluminium radiator features a thick 48 mm Hyper-HH core with ultra‑high fin density, engineered for maximum heat transfer—delivering approximately 35% better cooling than OEM plastic units. It includes Koyorad’s N‑Flo dual‑pass coolant routing, extending coolant dwell time for superior thermal efficiency. Crafted in Japan with precision TIG-welding, Nocolok brazing, and a billet filler neck plus 1/8″ NPT accessory port, this radiator guarantees durability, reliability, and a polished finish. Designed for direct bolt-in fitment, it uses factory mounts, hoses, fans, and cap—no modifications required. Ideal for daily driving, engine swaps, drifting, or track use, this radiator provides next-level cooling performance when it counts most.
USA Part Nos.: HH020369N
OEM Part Nos: 2140069F00, 2141069F00
Car Models: Silvia / 200SX S14/S15 2.0 10/93-
Engine code(s): SR20DET

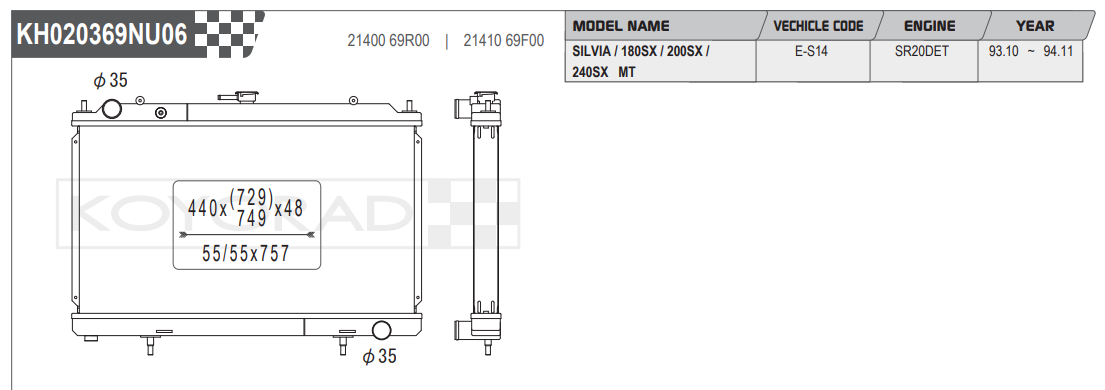

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
