Koyorad: Alloy Radiator: Rad. Sequoia / Tundra 4.6 / 5.7 Aut. 00/07-00/15
Upgrade your Toyota Tundra (2007–2020) or Sequoia (2008–2020) with 4.6 L or 5.7 L V8 engines using the Koyorad HH-Series Alloy Radiator (Part No. KH012076). Featuring a robust 48 mm all-aluminum Hyper-HH core, this radiator offers approximately 30% improved cooling over stock plastic units and eliminates the risk of cracked end tanks. Hand-built with TIG-welded end tanks and Nocolok-brazed fins, it’s engineered to OEM fitment, allowing use of factory fan shrouds, hoses, and mounts without modification . Includes the correct radiator cap and 1/8″ sensor port. Ideal for daily drivers, heavy towing, or supercharged applications—this is a durable, bolt-in cooling upgrade you can rely on.
USA Part Nos.: HH012076
OEM Part Nos: 164000S010
Car Models: Sequoia XK60 / Tundra XK50 4.6/5.7 11/06-

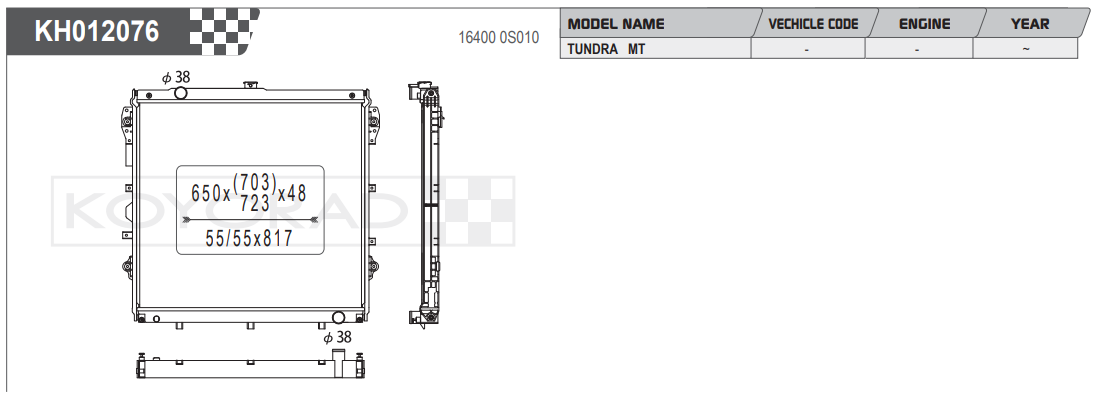

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
