Koyorad: Alloy Radiator: TOYOTA Innova Man 2KZ-FTV 04-
Upgrade your Toyota Innova (2004+, 2KZ-FTV 2.5 D‑4D, manual) with the Koyorad Alloy Radiator (Part No. KH011851). Featuring a thick 48 mm all-aluminum core with wider fin pitch, this radiator delivers significantly enhanced heat dissipation compared to the OEM unit. Fully TIG-welded and Nocolok-brazed, it offers durability, leak-free performance, and resistance to corrosion—ideal for demanding daily driving or long-haul applications. Precision-engineered for plug-and-play installation, it retains factory mounting points, hoses, fan shroud, and cap—no modifications required. This high-performance cooling solution helps maintain optimal engine temperatures and engine longevity under all operating conditions.
USA Part Nos.: N/A
OEM Part Nos: 164000L140, 164000L160, 164000L120
Car Models: Hilux VII / 4 Runner / Innova AN40 2.5d/2.7/3.0d 08/04-
Engine code(s): 2KZ-FTV

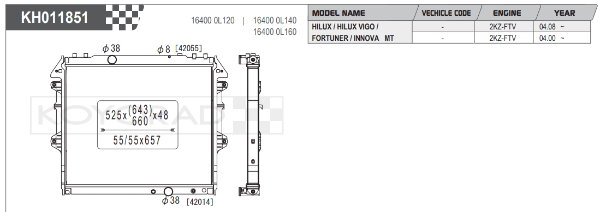

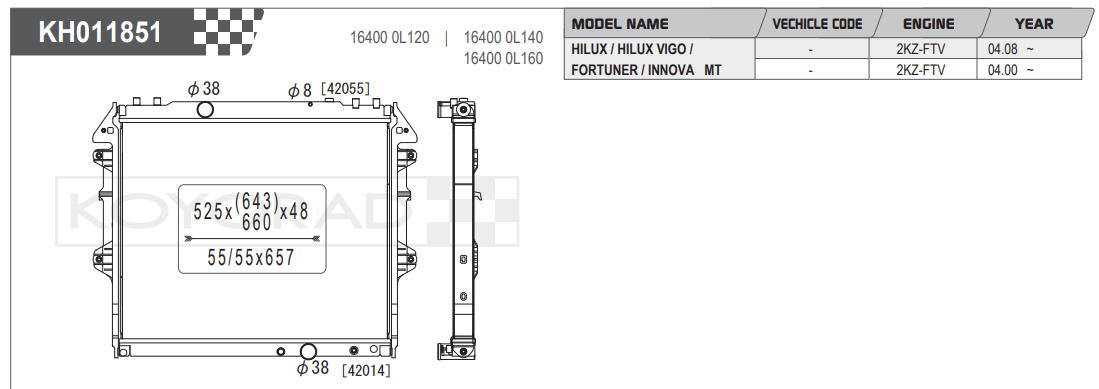

Diagrams:

Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
