Koyorad: Alloy Radiator: TOYOTA Vios Man 03-
Upgrade your Toyota Vios (2003+, 1NZ‑FE, manual transmission) with the Koyorad Hyper V-Series 48 mm Alloy Radiator (KH011837). Crafted from aircraft-grade aluminum and built with a thick core and high-efficiency fin design, this direct-fit radiator dramatically improves coolant flow and temperature control—especially under aggressive driving. Precision TIG-welded end tanks and heli-arc soldering for superior strength ensure top-tier reliability. Designed for easy plug-and-play installation using OEM mounts, hoses, and fan shroud—with no modifications necessary. This radiator offers enhanced thermal protection and longevity for daily drives and performance use.
USA Part Nos.: N/A
OEM Part Nos: 164000M030
Car Models: Vios XP40 1.3/1.5 03/03-
Engine code(s): 1NZ-FE

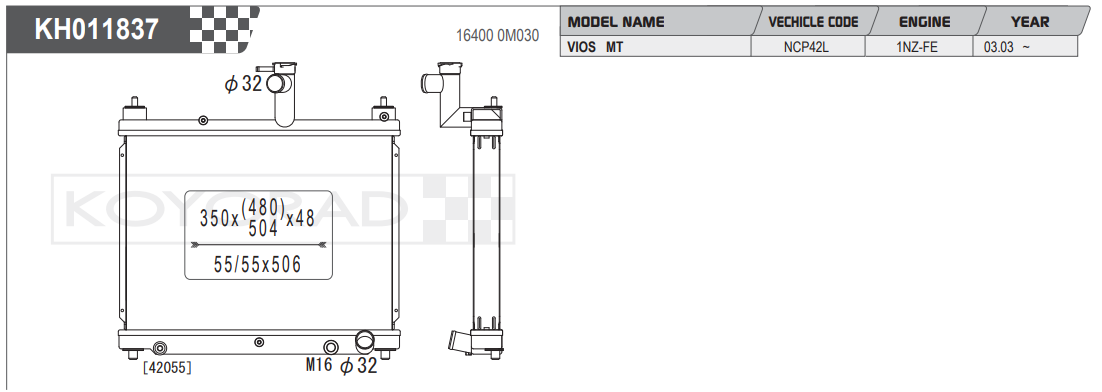

Diagrams:

Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
