Koyorad: Alloy Radiator: LOTUS LS ELISE 06-11 LS EXIGE 1.8L
Upgrade your Lotus Elise / Exige 1.8L (2005–2011, manual) with the Koyorad HH652890N Hyper V-Core radiator. Featuring a robust 48 mm dual-row Hyper core and Koyorad’s signature N‑Flo triple-pass coolant routing, this all-aluminum, TIG-welded and Nocolok-brazed radiator significantly enhances heat dissipation and cooling capacity—up to 35 % more efficient than OEM units—while maintaining a compact profile for tight engine bays. It offers a direct-fit, bolt-in replacement with no modifications needed and retains your factory fan shroud, hoses, and mounts. A billet filler neck and 1/8″ NPT sensor port add practicality. Ideal for circuit driving and spirited street use, this radiator delivers race-grade performance and reliability.
USA Part Nos.: HH652890N
OEM Part Nos: C117K0021F, A120K0029H, A117K0021F, B111K0006F , A111K0021F
Car Models: Elise / Exige S1/S2/S3 / 340R / 2-Eleven / Europa / Speedster / VX220 1.8/2.0/2.2/3.5 09/96-
Engine code(s): N/A

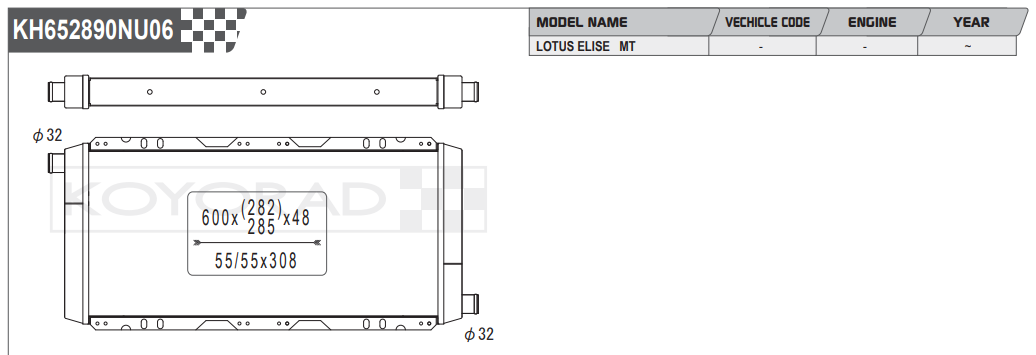

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
