Koyorad: Alloy Radiator: Rad. Carina / Celica Man. 09/93-08/99
Upgrade your Toyota Carina or Celica (1993–1999, manual transmission) with the Koyorad Hyper V‑Series Alloy Radiator (Part No. KV010405). This high-performance direct-fit radiator features a 36 mm Hyper V-Core, offering significantly improved heat dissipation and coolant capacity compared to the stock plastic unit. Crafted from all-aluminium with precision TIG-welded end tanks and Nocolok-brazed core, it delivers durability, leak-free performance, and racing-grade reliability. Built to OEM mounting specifications, it installs effortlessly using factory hoses, fan shrouds, and mounts—no modifications required. Ideal for both daily driving and spirited use, this bolt-in upgrade enhances thermal control and engine longevity.
USA Part Nos.: N/A
OEM Part Nos: 164007A060
Car Models: Carina / Celica / Corona / Curren T20 1.8/2.0 09/93-
Engine code(s): 4S-FE, 3S-FE, 3S-GTE

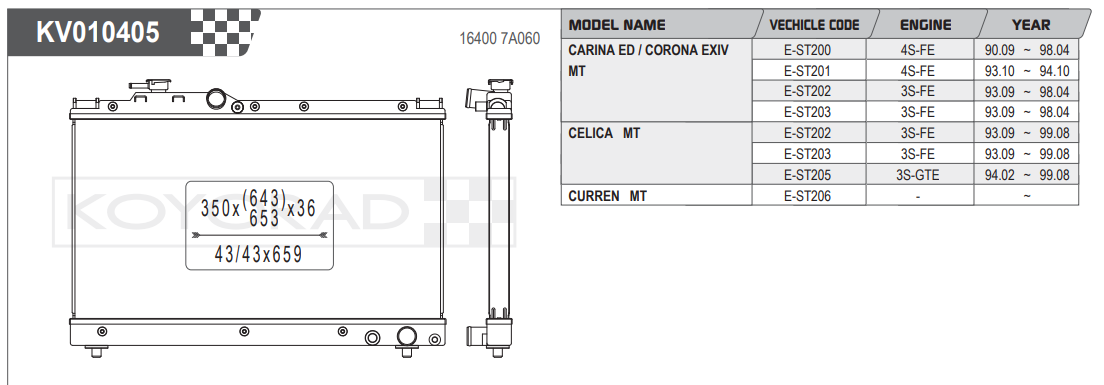

Diagrams:

Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
